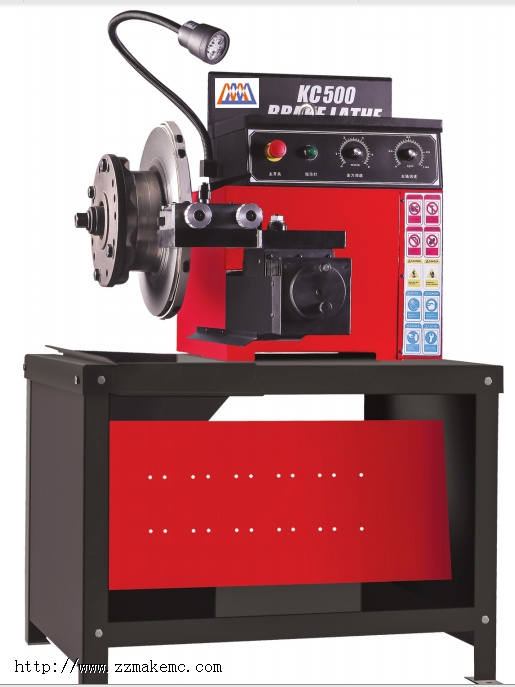

制动盘车床KC500
| Main Specifications(model) | KC500 |
| spindle speed | 0-120rpm |
| feed speed | 0-1.84"(0-46.8mm)/min |
| disc travel | 5.12(130mm) |
| max cutting depth | 0.023"(0.6mm) |
| disc diameter | 9.45-19.02(240-483mm) |
| disc thickness | 2"(50mm) |
| motor | 220v/380v,50/60Hz,1.5kw |
| gross weight | 300kg |
| dimension | 1130*1030*1300mm |
